Range 12.X - Filtering Ventilation Safety Cabinets


Range 12.X - Filtering Ventilation Safety Cabinets



CONFORMITY

  • Adsorption capacity in compliance with the NF X 15-211 norm.
  • Large warning labels in compliance with ISO 3864 and NF X08.003 norms, 92/58/CEE European directive.
  • In compliance with the health regulation articles (R5132-66 and R5132-68).
  • Electric fan in compliance with CE specifications.
  • Tested and approved by MPA DRESDEN laboratory.


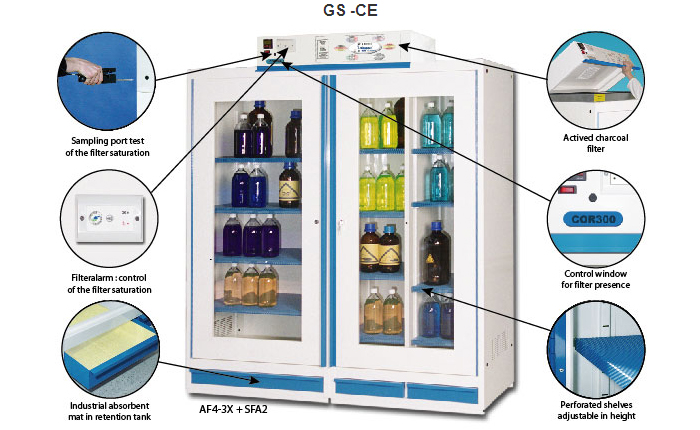

ADVANTAGES

  • Cabinet delivered ready to use.
  • Independent cabinet ensuring perfect security.
  • Elimination of dangerous vapours.
  • No need of connection to an exhausting system. No modification of building structure required.
  • Easy sight of the stored products.
  • Perforated shelves allowing liquids flow in case of discharge.
  • Ventilation system with lighting control.
  • Window control for presence of the filter adapted to your needs.
  • Control of the saturation level with reactive coded tubes.
  • Specialised high efficiency actived charcoal filter, in compliance with the NF X 15-211 norm, treated following chemical products stored.
  • Dust pre-filter, 92% efficienty with less then 3 µm particles.
  • Easy chane of actived charcoal cell.


TECHNICAL SPECIFICATION

Storage Compartment

  • Buit in 15/10th steel with white epoxy paint (RAL 9010).
  • Large glazed door with framing.
  • 4 perforated shelves adjustable in height.
  • Double air inlet at the bottom.
  • Key-locking system.
  • Drawer/retention tank at the bottom with absorbing mat.

Ventilation / Filtration Compartment

  • Buit in 15/10th steel with white epoxy paint (RAL 9010).
  • Noiseless fan : 220 volts - 50 Hz - 0,2 A - 47 watts; flow: 200 m3/h; IP20 protection, sound level 49 dB(A); delivered with cable and plug.


OPTIONS

  • Additional shelf.
  • Actived charcoal filters: The cabinets are delivered without actived charcoal filter. You must to select one in the table (at the bootm of this page) depending on your products storage.
  • Control of filter saturation level by FILTRALARM:
    - Control lead.
    - Monitoring system to control the air velocity across the filter.
    - Adjustement allowing the detection of filter saturation level and faulty air flow.
    - Sound alarm indicating a malfunction in the device.
    - Light alarm system.
  • Control of filter saturation level by REACTIVE TUBES:
    - Control port on the side of the cabinet.
    - Use of a manual pump.
    - Control of efficienty of active coal filter’s saturation level by observing the tubes.


STORAGE CAPACITY

  • 1 shelf : 35 bottles of 1 litre or 15 bottles of 2,5 litres.
  • 1 half-shelf : 15 bottles of 1 litre or 7 bottles of 2,5 litres.


WARNING!

  • For safety reasons (chemical reactions between incompatible products) the products of different families must be stored separateky.


Reference Description Dimensions HxWxD (mm) Number of shelves Number of base trough Storage capacity (bottles) 1L or 2,5L Weight (kg)
To connect Filtering ventilation
Organics Corrosives

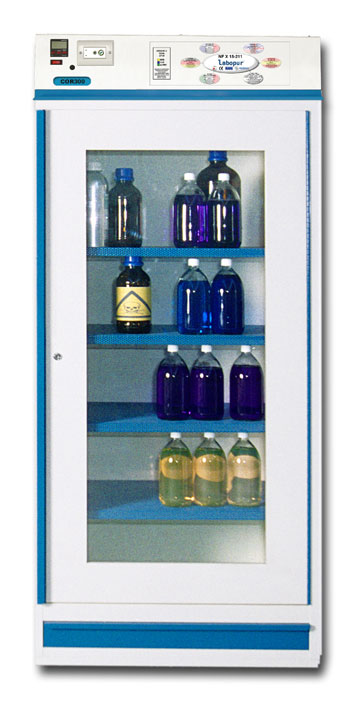

AF2X AF2X + ORG300 AF2X + COR300 1 door cabinet 1 compartment External 1900x800x545 Internal 1660x780x500 4 1 140 ou 60 140

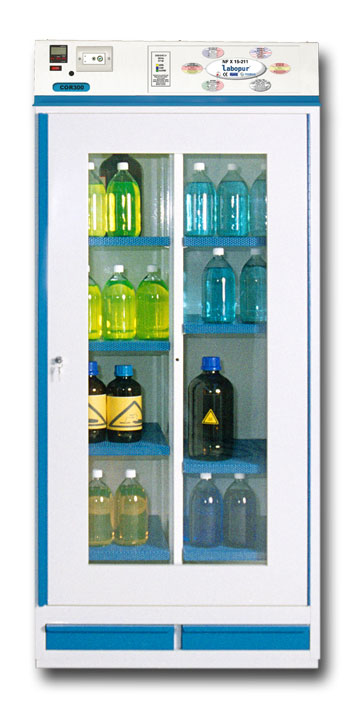

AF2-2X AF2-2X + ORG300 AF2-2X + COR300 1 door cabinet 2 compartments External 1900x800x545 Internal (2x)1660x380x500 8 half-shelves 2 120 ou 56 150

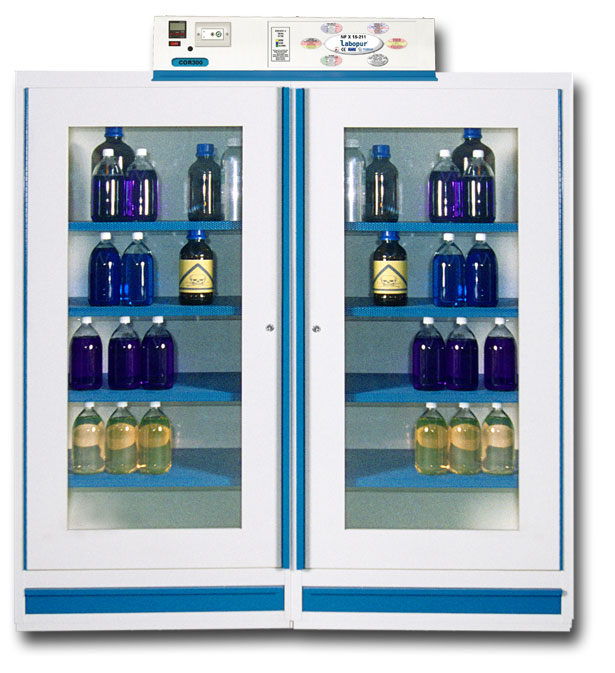

AF4-2X AF4-2X + ORG300 AF4-2X + COR300 2 doors cabient with 2 compartments External 1950x1600x545 Internal (2x)1660x780x500 8 2 280 ou 120 280

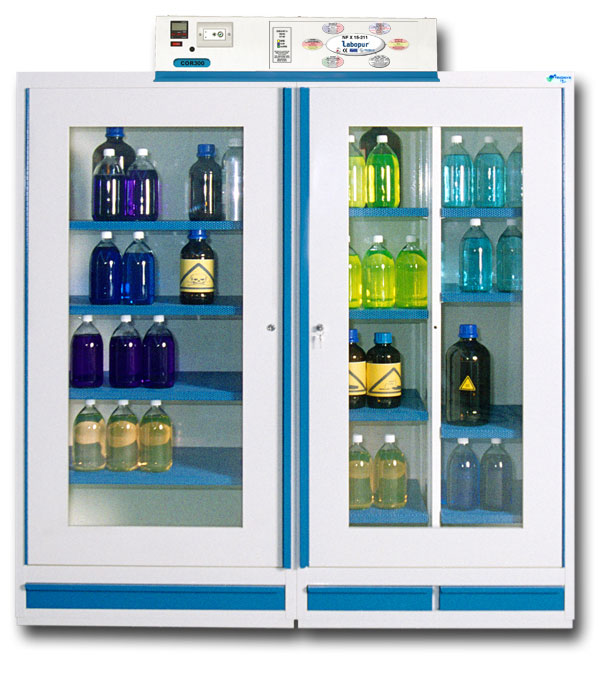

AF4-3X AF4-3X + ORG300 AF4-3X + COR300 2 doors cabinets with 3 compartments External 1950x1600x545 Internal (1x)1660x780x500 (x2) 1660x380x500 4 + 8 half-shelves 3 260 ou 116 290
AF4-4X AF4-4X + ORG300 AF4-4X + COR300 2 doors cabinets with 4 compartments External 1950x1600x545 Internal (x4) 1660x380x500 16 half-shelves 4 240 ou 112 300


CAUTION!

  • The cabinets are delivered without actived charcoal filter. You have to select one in the table bellow depending on the products you store.
  • The actived charcoal filter must be changed at least once a year.

Reference Description Dimensions Weight (kg) BET Surface (m2/g) Grading (mm) Adsorption
capacity (g)
CCl4 HCl
ORG300 Actived charcoal filter for organic vapours (yellow) 70x730x380 14 1100 4,75-2,36 - 1300
COR300 Actived charcoal filter for corrosive vapours (blue) 70x730x380 15 1250 4,75-2,36 2840 -
SFA2 Filteralarm (to order imperatively with cabinet) - - - - -
PMAF Manual pump 0,4 - - - -
TROR Pack of 10 reactive tubes for “organic tests” 0,08 - - - -
TRAC Pack of 10 reactive tubes for “corrosive tests” 0,08 - - - -
TROA Pack of 5 reactive tubes for “organic tests” and 5 reactive tubes for “corrosive tests” 0,08 - - - -
ESAF Additional half-shelf for AF2-2X, AF4-3X et AF4-4X 3 - - - -
ESAF2 Additional shelf for AF2X, AF4-2X et AF4-3X 5 - - - -

The manufacturer keeps the right to modify technical characteristics without notice. Edition 11/2008.
