Range 1.R - 100% Retention Safety Cabinets
CONFORMITY
- In compliance with polluting liquids storage regulation (article 10 of 2nd Feburary 1998).
- Large warning labels in compliance with ISO 3864, 92/58/CEE European directive and NF X08.003 norm.
ADVANTAGES
- For the storage of noxious, pollutant, little corrosive and little flammable products.
- Cabinet with identical retention and storage capacity.
- Perforated shelves allow to recover the possible leaks into the retention tank.
PASSIVE SECURITY
- Built in steel 12/10th.
- Grey epoxy paint RAL 7035 for the body and yellow epoxy paint RAL 1023 for the doors.
- "Toxic", "Noxious", "Pollutant", "Corrosive" or "Flammable" large warning label ( to specify at the order).
- 3 perforated shelves adjustable in height.
- Integrated retention tank.
ACTIVE SECURITY
- High and low vent Ø 100 mm with flame arrester grid.
- Doors with 2 points lock.
- Key-locking system.
OPTIONS
- Additional shelf.
- 500g CO2 extinguisher with automatic release by thermo bulb (ref. EX500G).
- Industrial absorbing mat (ref. JF10D).
DOWNLOAD
To download this documentation, click here.
| Reference |
Description |
External dim.
H x L x P (mm) |
Internal dim.
H x L x P (mm) |
Storage capacity (L) |
Retentionbr />
capacity (L) |
Number of shelves |
Weight (kg) |

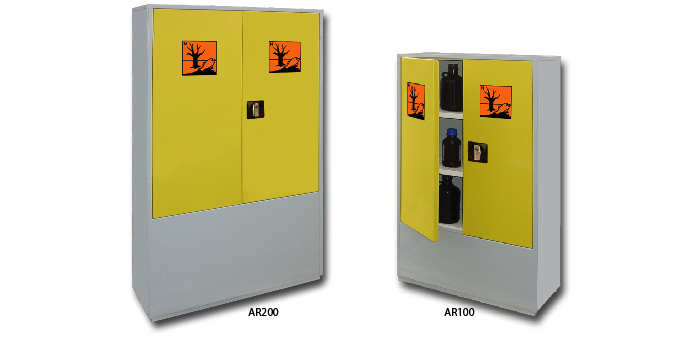

| AR100 |
Safety cabinet 100 litres |
1430x800x400 |
1025x780x380 |
100 |
100 |
3 |
70 |
| ESAR100 |
Additional shelf for AR100 model |
30x780x380 |
- |
- |
- |
- |
8 |
| AR200 |
Safety cabinet 200 litres |
1730x1000x400 |
1145x980x380 |
200 |
200 |
3 |
100 |
| ESAR200 |
Additional shelf for AR200 model |
30x980x380 |
- |
- |
- |
- |
10 |
| EX500G |
500g CO2 extinguisher |
- |
- |
- |
- |
- |
1 |
The manufacturer keeps the right to modify technical characteristics without notice. Edition 03/2009.
