MAIN INFORMATIONS

For security reasons, safety showers and eye-washers are highly recommended in every working area where chemical projections danger exist. Thus, they can be found in:

  • Chemical and pharmaceutical industries,
  • Food-processing and automobile industries,
  • Chemical, petrochemical and biochemical laboratories,
  • State workshops, car repair shops, printing houses,
  • Universities and schools,
  • Hospitals and clinics,
  • Filtering stations and swimming pools...

Considered as first aid equipments, safety showers and eye-washers must be close to risky areas. The access must be easy and well indicated.



REGULATION

Working Regulations

According to R.4224-14 article, working areas must be fitted out with first aid equipment adapted to the possible risks and with an easy access. Please, refer to the local regulations in your country.


ISO 3864

Labelling regulation : At the European level, it corresponds to 92/58/CEE instruction. All our first aid equipments are provided with labels in conformity with these standards.


European Regulation EN 15154-1

This regulation concerns body showers, connected to water network. The main requirements are:

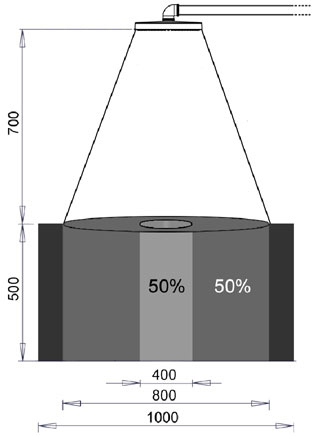

  • The water distribution of the emergency body shower shall be measured by this procedures : At a distance of 700mm below the shower head, 50% (± 10%) of the volume of water delivered shall fall in a circle with a diameter of 400mm, and the area reached by minimum 95% of the water shall be limited to a circle with a diameter of 800mm.
  • When no national or local regulations apply, a constant flow rate of minimum 60l/min is suitable.
  • The body shower shall be capable of delivering this supply for a minimum of 15 minutes.
  • The velocity of the water spray shall be low enough to be non-injurious to the user.
  • The shower head shall be designed to be installed so that its lower edge is 2200 (± 100) mm above the level on which the user stands.
  • The water valve shall not close automatically.
  • The manufacturer shall supply information on installation, operation and maintenance as well as the method and frequency of routing testing.
  • Showers must be provided with the appropriate label (please read above).




European Standard En 15154-2

This regulation concerns eye-washers, connected to water network. The main requirements are:

  • Plumbed-in eye-wash units shall be able to deliver a constant flow rate of minimum 6l/min,
  • Eye-wash units shall be capable of delivering this supply for a minimum of 15 minutes,
  • The velocity of the water shall be low enough to be non-injurous to the user,
  • The jet of water supplied by the nozzles shall spray at a minimum height of 100mm and may spray at a maximum height of 300mm,
  • The outlet nozzles shall be installed at a height of 1000 (± 200)mm above the level on which the user stands,
  • The water valve shall not close automatically,
  • The manufacturer shall supply information on installation, operation and maintenance as well as the method and frequency of routing testing,
  • Eye-washers must be provided with the appropriate label (please read above).

Water Temperature

EN 15154-1 and EN 15154-2 regulations recommend to use a water between 15°C and 37°C, in order not to worsen lesions of injuried persons and to ensure a better comfort. We advise you to use a thermostatic mixing valve (option as follow).


CHOOSE THE ADAPED SOLUTION TO THE INCURED RISKS

Risks First-aid solutions

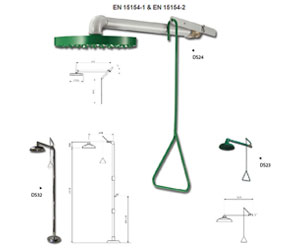

Projection on body Stationary Safety shower connected to water network
Itinerant Portable shower stations
Eyes and face projection Stationary Eye-washers connected to water network
Itinerant Autonomous eye-washers

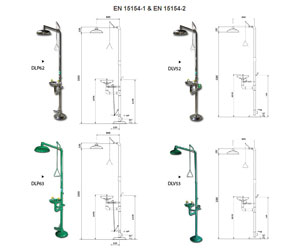

Projection on body, eyes and face combined Stationary Safety combination units
Itinerant Portable shower stations and Autonomous eye-washers


Option

Thermostatic mixing valve (MCL-MTD)

Thermostatic mixing valve (MCL-MTD)

For eye-washers: MCL For safety showers and combination units: MTD





Thermostatic mixing valve (MCL-MTD)

Thermostatic mixing valve (MCL-MTD)

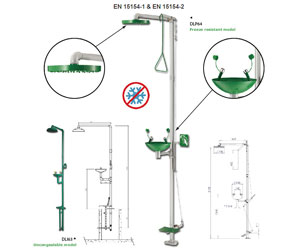

In order to avoid the risk, we recommend you to use an heating cable that prevent the risk of frozen water in the tubing untill -1°C. This solution can be used on every safety showers and eye-washers model Included: 1 m of heating cable, electrical furniture kit, and anti-freezing box.
