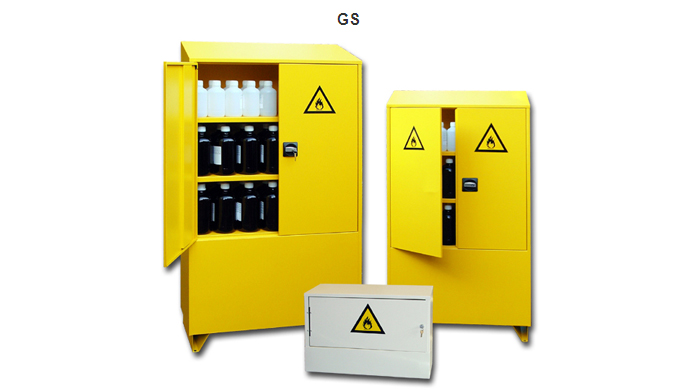

Range 1 - Safety Cabinets with Extinguisher for Flammable Products
CONFORMITY
- Normalized labelling according to ISO 3864 and 92/58/CEE directive.
- Tested and approved by MPA DRESDEN laboratory.
ADVANTAGES
- Large retention tank for AMS 100 and AMS 200 models.
- Automatic self extinguishing in case of fire.
- Sloping roof to avoid unauthorized storage.
PASSIVE SECURITY
- Built in steel 15/10th.
- Epoxy paint : Yellow RAL 1023 or Beige RAL 1013.
- "Flammable" large warning labels.
- 3 adjustable perforated shelves (except AMS10 and AMS20 models, one non-ajustable shelf).
- Retention tank at the bottom.
ACTIVE SECURITY
- Equipped with a CO² extinguisher:
- 80g for AMS10 and AMS20 models;
- 500g for AMS100 and AMS200 models
- Automatic release by thermic bulb (between 65 and 72°C).
- High and low vent Ø 100 mm with flame arresters (except AMS10 and AMS20 models).
- Self-closing double doors (except AMS10 and AMS20 models, one self-closing door).
- Key locking system.
OPTIONS
- Additional perforated shelf for AMS100 and AMS200 models.
- Spare extinguisher.
- These cabinets are also available without extinguisher. Contact-us for more information.
| Reference |
External dim.
H x W x D (mm) |
Internal dim.
H x W x D (mm) |
Storage capacity (L) |
Retention capacity (L) |
Number of shelves |
Weight (kg) |
| AMS10 |
455 x 500 x 250 |
260 x 490 x 220 |
10 |
10 |
1 |
12 |
| AMS20 |
500 x 700 x 250 |
260 x 690 x 220 |
20 |
15 |
1 |
20 |
| AMS100 |
1500 x 800 x 400 |
1220 x 780 x 380 |
100 |
112 |
3 |
70 |
| AMS200 |
1800 x 1000 x 400 |
1530 x 980 x 380 |
200 |
130 |
3 |
100 |
| ESAMS1 |
30 x 780 x 380 |
Additional shelf for AMS100 |
8 |
| ESAMS2 |
30 x 980 x 380 |
Additional shelf for AMS200 |
10 |
The manufacturer keeps the right to modify technical characteristics without notice. Edition 02/2008.
