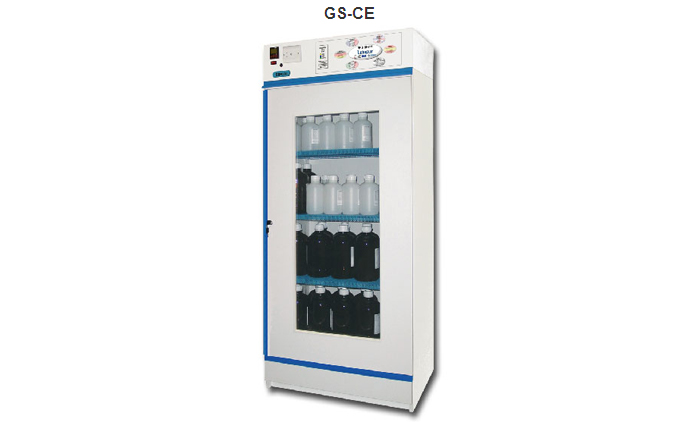

Range 12.X - Filtering Ventilation Safety Cabinets (Melamine-bases wood)

• Adsorption capacity in compliance with NF X 15-211 norm.
• Large warning labels in compliance with ISO 3864 and NF X08.003 norms, 92/58/CEE European directive.
• In compliance with the health regulation articles (R5132-66 and R5132-68).
• Electric fan in compliance with CE specifications.
• Tested and approved by MPA DRESDEN laboratory.

• Cabinet delivered ready to use.
• Independent cabinet ensuring perfect security.
• Elimination of dangerous vapours.
• No need of connection to an exhausting system. No modification of building structure required.
• Easy sight of the stored products.
• Perforated shelves allowing liquids flow in case of discharge.
• Ventilation system with lighting control.
• Window control for presence of the filter adapted to your needs.
• Control of the saturation level with reactive coded tubes.
• Specialised high efficiency actived charcoal filter treated following chemical products stored.
• Dust pre-filter, 92% efficienty with less then 3 µm particles.
• Easy chane of actived charcoal cell.

Storage Compartment

• Built in white malamine-based wood.
• Large glazed door with framing.
• 4 perforated shelves adjustable in height.
• Double air inlet at the bottom.
• Key-locking system.
• Drawer/retention tank at the bottom with absorbing mat.

Veltilation / Filtration Compartment

• Buit in 15/10th steel with white epoxy paint (RAL 9010).
• Noiseless fan : 220 volts - 50 Hz - 0,2 A - 47 watts; flow: 200 m3/h; IP20 protection, sound level 49 dB(A); delivered with cable and plug.

• Additional shelf.
• Actived charcoal filters:
  - The cabinets are delivered without actived charcoal filter. You must to select one in the table (at the bootm of this page) depending on your products storage.
• Control of filter saturation level by FILTRALARM:
  - Control lead.
  -Adjustement allowing the detection of filter saturation level and faulty air flow.
  -Sound alarm indicating a malfunction in the device.
  - Light alarm system.
• Control of filter saturation level by REACTIVE TUBES:
  - Control port on the side of the cabinet.
  - Use of a manual pump.
  - Control of efficienty of active coal filter’s saturation level by observing the tubes.

• The active charcoal filter must be changed at least once a year.

The manufacturer keeps the right to modify technical characteristics without notice. Edition 11/2008.
